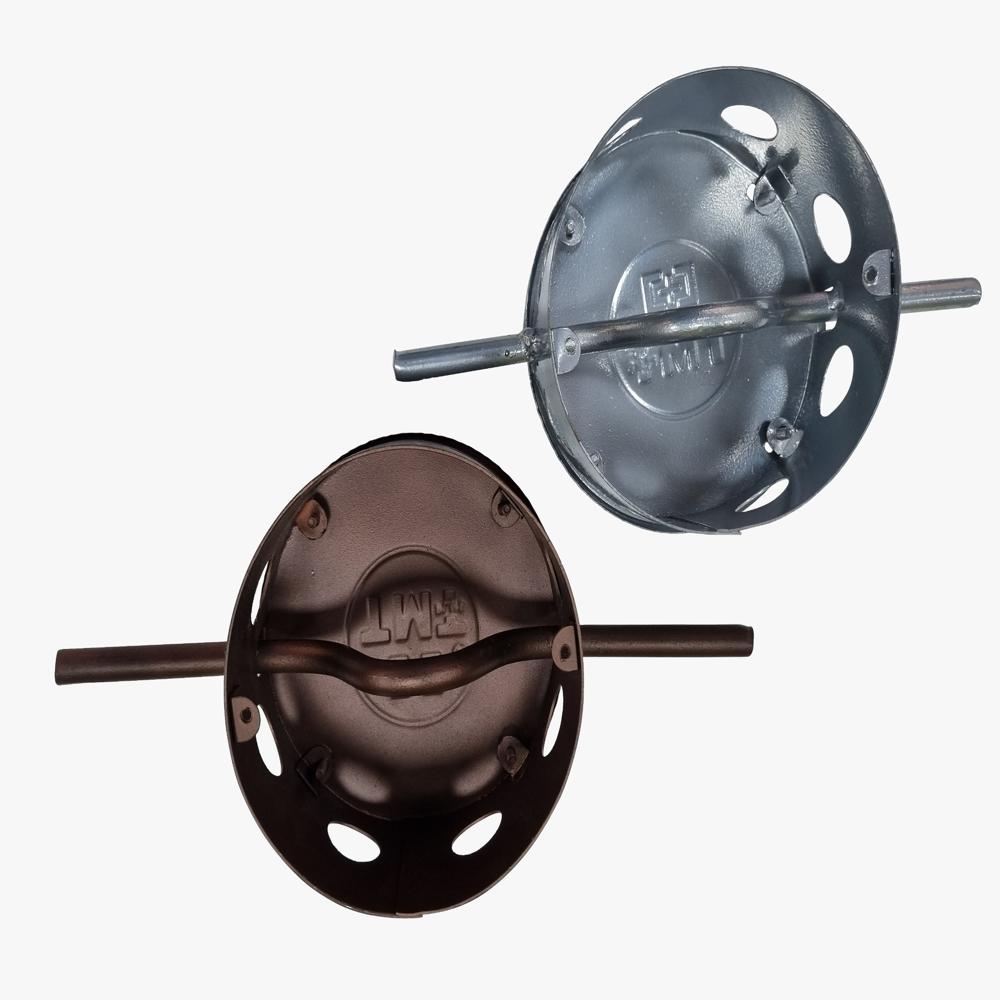

Fan Boxes

Price 237.63 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Fan Boxes Specification

Product Type
round

Power Rating
IP54 or higher,

Protection Level
IP55

Surface Treatment
Powder Coating

Thickness
0.5 to 1 Millimeter (mm)

Paint Finishing
copper type steel

Accuracy
5 10 %

Dimension (L*W*H)
76*76 Millimeter (mm)

Weight
0.3 Kilograms (kg)

Rated Voltage
12 or 24 Volt (V)

Operating Temperature
-10 to 70 Celsius (oC)

Color
copper color

Warranty
depend on terms

IP Rating
IP54 or higher,

Display Type
round

Rated Current
0.1 to 1 Ampere (amp)

Material
mild steel for durability

Features
Compact Design: Space-saving, ideal for confined installations. Energy Efficient: Low power consumption suitable for battery-operated devices. Durability: Copper construction offers longevity and resistance to corrosion. Ease of Installation: Standard mounting options compatible with various enclosures.

Frequency
50/60 Hertz (HZ)

Conductor
Copper (99.9% purity), offering high electrical conductivity

Fan Boxes Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Certifications
its certified

About Fan Boxes

Easy to attach
Corrosion Proof Finish
Completely protected from adverse weather conditions

Specification

Fan Box Detailed Description

The Fan Box is a robust and reliable electrical enclosure designed specifically for housing and protecting the electrical components of fans, including wiring, switches, and control devices. Built with high-quality materials, it ensures long-lasting performance, safety, and ease of installation for both residential and industrial applications.

1. Construction & Material

Enclosure Material: Made from CRCA (Cold Rolled Close Annealed) sheet or aluminum, offering excellent corrosion resistance and durability.
Finish: Powder-coated or painted to prevent rust and maintain aesthetic appeal over time.
Conductor Material: Internal connections are made of high-conductivity copper, ensuring reliable electrical performance.
Mechanical Strength: Designed to withstand mechanical shocks and environmental stresses.

2. Electrical Specifications

Rated Voltage: Typically 230V AC (single-phase) or 400V AC (three-phase).
Rated Current: 0.5A 5A depending on fan type and application.
Frequency: 50Hz / 60Hz.
Protection Devices: Equipped with MCBs, fuses, or thermal overloads to safeguard against overcurrent and short circuits.

3. Protection & Safety

IP Rating: IP20 for indoor installations; IP54 for dust and splash protection in semi-outdoor environments.
Overload Protection: Integrated circuit protection ensures safe operation.
Safety Compliance: Meets standard electrical safety norms for industrial and residential installations.

4. Dimensions & Weight

Average Size (L B H): 12" 10" 6" (30cm 25cm 15cm).
Approximate Weight: 36 kg, depending on material and size.
Operating Temperature: -10C to 60C.
Packaging Dimensions: 14" 12" 8" with protective padding to prevent damage during transport.

5. Features

Compact and lightweight design for easy installation in ceilings, walls, or ducts.
High durability and corrosion resistance for long-term use.
Transparent viewing window (optional) for monitoring internal components.
Pre-drilled mounting holes for hassle-free installation.
Designed for safe operation in industrial, commercial, and residential settings.

6. Applications

Ceiling, wall, or duct-mounted fans.
Ventilation systems in industrial and commercial buildings.
HVAC (Heating, Ventilation, and Air Conditioning) setups.
Exhaust and cooling fan installations in workshops, factories, and large indoor spaces.

7. Packaging & Shipping

Delivered in corrugated boxes with protective foam or bubble wrap.
Average packaged weight: 47 kg.
Ensures safe handling and prevents damage during transportation
Summary:

The Fan Box is a durable, safe, and versatile solution for protecting fan electrical components. Its sturdy construction, reliable protection features, and compact design make it suitable for a wide range of applications in both residential and industrial settings. With IP-rated enclosures and high-quality materials, it ensures longevity and reliable operation under varying environmental conditions.
